IRFS7540 - N-Channel MOSFET

IRFS7540 Description

isc N-Channel MOSFET Transistor *.

IRFS7540 Features

* With TO-263( D2PAK ) packaging
* High speed switching
* Low gate input resistance
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRFS7540 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous;Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±20 110 80 430 PD Total Dissipation 160 Tj Operat

📥 Download Datasheet

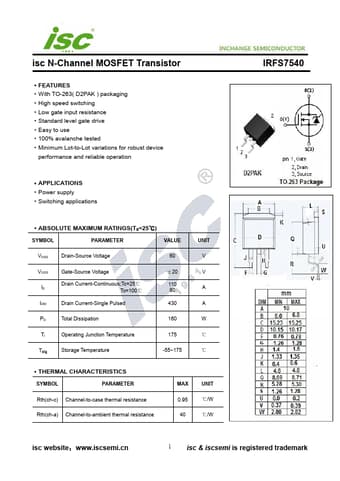

Preview of IRFS7540 PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRFS7540
Manufacturer
INCHANGE
File Size
248.00 KB
Datasheet
IRFS7540-INCHANGE.pdf
Description
N-Channel MOSFET
