IRFS750A - N-Channel MOSFET Transistor

Product Overview

Inchange Semiconductor

Datasheet Details

Part number	IRFS750A
Manufacturer	Inchange Semiconductor
File Size	53.21 KB
Description	N-Channel MOSFET Transistor

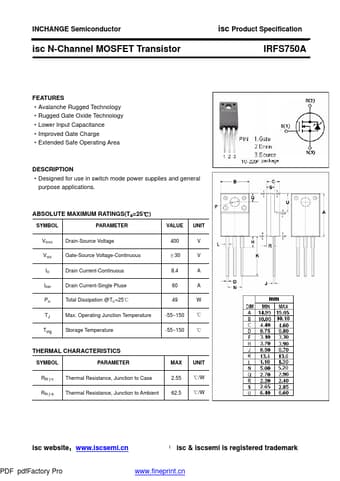

Datasheet	IRFS750A Datasheet
Additional preview pages of the IRFS750A datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 400 ±30 V V 8.4 A 60 A 49 W -55~150 -55~150 ℃ ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resis

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
