KSA1142 - PNP Transistor

Product Overview

📥 Download Datasheet

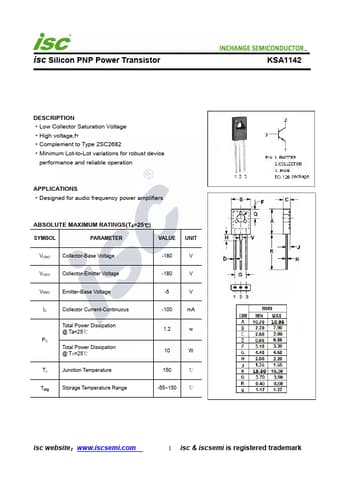

Datasheet preview – KSA1142

Datasheet Details

Part number KSA1142
Manufacturer INCHANGE
File Size 191.36 KB
Description PNP Transistor
Datasheet download datasheet KSA1142 Datasheet
Additional preview pages of the KSA1142 datasheet.

Product details

Description

Low Collector Saturation Voltage High voltage,fT Complement to Type 2SC2682 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio frequency power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -180 V VCEO Collector-Emitter Voltage -180 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous Total Power Dissipation @ Ta=25℃ PC Total
