KSA1156 - PNP Transistor

Product Overview

📥 Download Datasheet

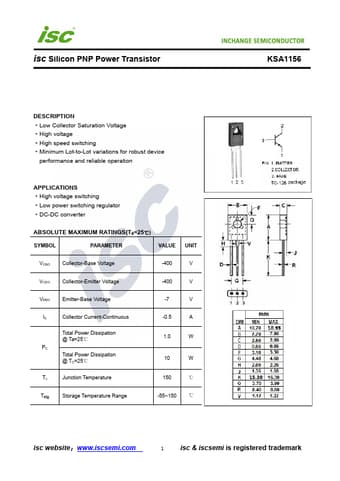

Datasheet preview – KSA1156

Datasheet Details

Part number KSA1156
Manufacturer INCHANGE
File Size 204.49 KB
Description PNP Transistor
Datasheet download datasheet KSA1156 Datasheet
Additional preview pages of the KSA1156 datasheet.

Product details

Description

Low Collector Saturation Voltage High voltage High speed switching Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS High voltage switching Low power switching regulator DC-DC converter ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -400 V VCEO Collector-Emitter Voltage -400 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous Total Power Dissi
