KSC2752 - NPN Transistor

KSC2752 Description

isc Silicon NPN Power Transistor .
High breakdown voltage. Complementary to KSA1156 PNP transistor. 100% avalanche tested. Minimum Lot-to-Lot variations for robust devi.

KSC2752 Applications

* The KSC2752 is suitable for low power switching regulator, DC-DC converter and high voltage switch. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCER Collector-Emitter Voltage RBE=150Ω 500 V VCEO Collector-Emitter Voltage 400 V V

📥 Download Datasheet

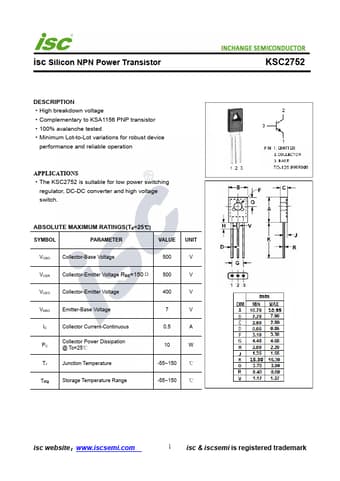

Preview of KSC2752 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KSC2752
Manufacturer
INCHANGE
File Size
206.49 KB
Datasheet
KSC2752-INCHANGE.pdf
Description
NPN Transistor
