KSC2073 - NPN Transistor

KSC2073 Description

isc Silicon NPN Power Transistor KSC2073 .
Collector-Emitter Breakdown Voltage- :V(BR)CEO= 150V(Min). Wide Area of Safe Operation. Complement to Type KSA940. 100% avalanche tes.

KSC2073 Applications

* Power amplifier applications.
* Vertical output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 150 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 1.5 A IB Base C

📥 Download Datasheet

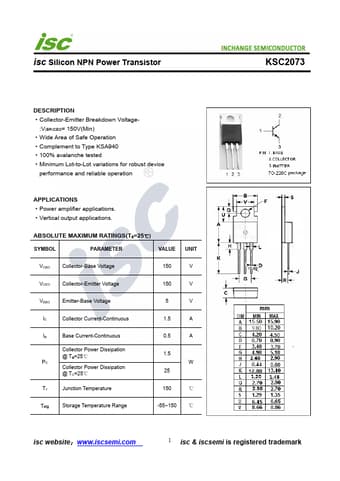

Preview of KSC2073 PDF
datasheet Preview Page 2

Datasheet Details

Part number
KSC2073
Manufacturer
INCHANGE
File Size
187.82 KB
Datasheet
KSC2073-INCHANGE.pdf
Description
NPN Transistor
