KSC2233 Datasheet - Fairchild Semiconductor

KSC2233 NPN Epitaxial Silicon Transistor

KSC2233 KSC2233 B/W TV Horizontal Deflection Output Collector-Base Voltage : VCBO = 200V Collector Current (DC) : IC = 4A Collector Dissipation : PC = 40W 1 TO-220 2.Collector 3.Emitter 1.Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation (TC=25°C) Junction Temperatu.

KSC2233 Datasheet (42.00 KB)

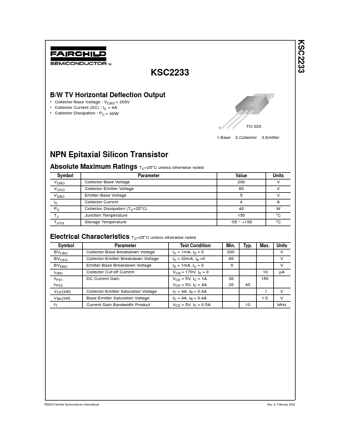

Preview of KSC2233 PDF
KSC2233 Datasheet Preview Page 2 KSC2233 Datasheet Preview Page 3

Datasheet Details

Part number:

KSC2233

Manufacturer:

Fairchild Semiconductor

File Size:

42.00 KB

Description:

Npn epitaxial silicon transistor.
