KSC2328 Datasheet - Fairchild Semiconductor

KSC2328 NPN Epitaxial Silicon Transistor

KSC2328A KSC2328A Audio Power Amplifier Applications Complement to KSA928A Collector Power Dissipation : PC=1W 3 Watt Output Application 1 TO-92L 1. Emitter 2. Collector 3. Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Tempera.

KSC2328_FairchildSemiconductor.pdf

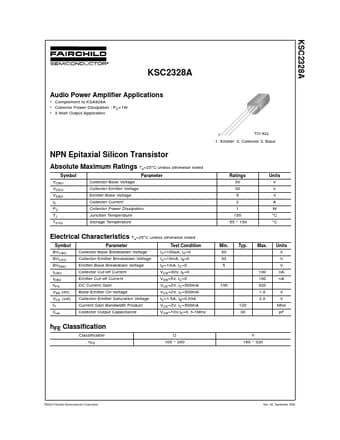

Preview of KSC2328 PDF
KSC2328 Datasheet Preview Page 2 KSC2328 Datasheet Preview Page 3

Datasheet Details

Part number:

KSC2328

Manufacturer:

Fairchild Semiconductor

File Size:

40.08 KB

Description:

Npn epitaxial silicon transistor.
