KSC2330A Datasheet - Fairchild Semiconductor

KSC2330A - NPN Epitaxial Silicon Transistor

KSC2330A KSC2330A Color TV Chroma Output Collector-Base Voltage : VCBO=400V Current Gain Bandwidth Product : fT=50MHz (TYP.) 1 TO-92L 1. Emitter 2. Collector 3. Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings 400 400 7.

KSC2330A_FairchildSemiconductor.pdf

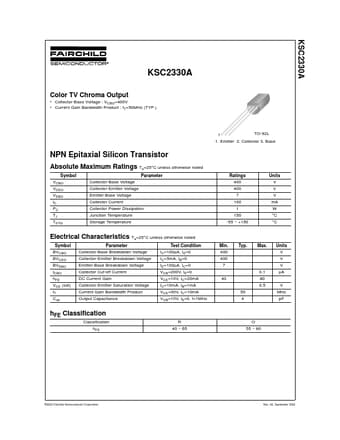

KSC2330A Datasheet Preview — Preview of KSC2330A PDF

Datasheet Details

Part number:

KSC2330A

Manufacturer:

Fairchild Semiconductor

File Size:

38.86 KB

Description:

Npn epitaxial silicon transistor.
