KSC2335F Datasheet - Fairchild Semiconductor

KSC2335F - NPN Epitaxial Silicon Transistor

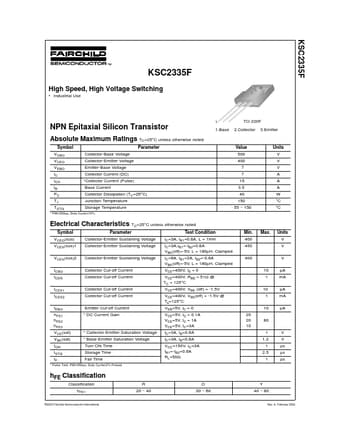

KSC2335F KSC2335F High Speed, High Voltage Switching Industrial Use NPN Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP IB PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (DC) Collector Current (Pulse) Base Current Collector Dissipation (TC=25°C) Junction Temperature Storage Temperature 1 TO-220F 2.Collector 3.Emitter 1.Base Value 500 400 7 7 15 3.5 .

KSC2335F_FairchildSemiconductor.pdf

KSC2335F Datasheet Preview — Preview of KSC2335F PDF

Datasheet Details

Part number:

KSC2335F

Manufacturer:

Fairchild Semiconductor

File Size:

33.03 KB

Description:

Npn epitaxial silicon transistor.
