KSC2310 Datasheet - Fairchild Semiconductor

KSC2310 NPN Epitaxial Silicon Transistor

KSC2310 KSC2310 High Voltage Power Amplifier Collector-Base Voltage : VCBO=200V Current Gain Bandwidth Product : fT=100MHz 1 TO-92L 1. Emitter 2. Collector 3. Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings 200 150 5 5.

KSC2310_FairchildSemiconductor.pdf

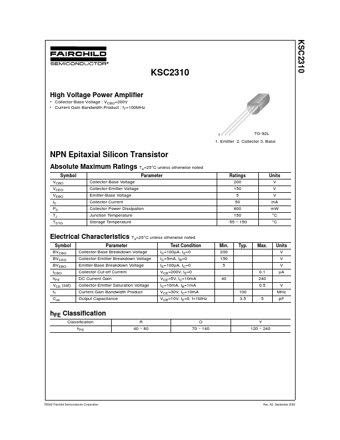

Preview of KSC2310 PDF
KSC2310 Datasheet Preview Page 2 KSC2310 Datasheet Preview Page 3

Datasheet Details

Part number:

KSC2310

Manufacturer:

Fairchild Semiconductor

File Size:

41.25 KB

Description:

Npn epitaxial silicon transistor.
