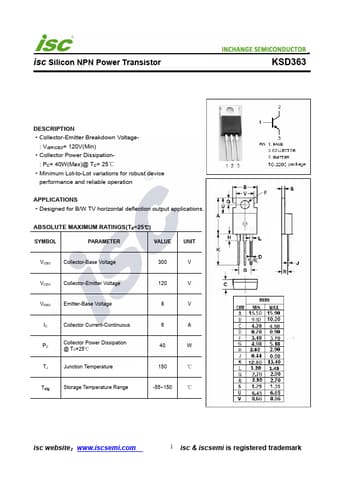

KSD363 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

KSD363

Manufacturer:

INCHANGE

File Size:

210.73kb

Download:

📄 Datasheet

Description:

Npn transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 120V(Min)

Collector Power Dissipation- : PC= 40W(Max)@ TC= 25℃

KSD363 Application

• Applications
• Designed for B/W TV horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UN
