KSD2012 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

KSD2012

Manufacturer:

INCHANGE

File Size:

192.72kb

Download:

📄 Datasheet

Description:

Npn transistor. High DC Current Gain- : hFE= 100 (Min)@ IC= 0.5A Low Saturation Voltage- : VCE(sat)= 1.0V (Max) High Power

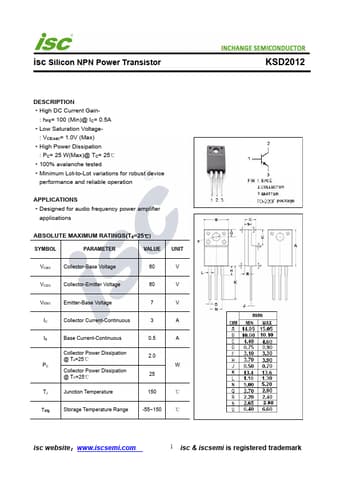

Datasheet Preview: KSD2012 📥 Download PDF (192.72kb)
Page 2 of KSD2012

KSD2012 Application

  • Applications
  • Designed for audio frequency power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT V
