KSD210AC3 Solid State Relay

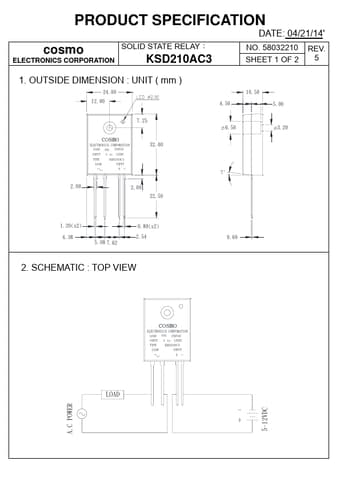

PRODUCT SPECIFICATION DATE: 04/21/14' cosmo SOLID STATE RELAY： ELECTRONICS CORPORATION KSD210AC3 NO. 58032210 REV. SHEET 1 OF 2 5 1. OUTSIDE DIMENSION : UNIT ( mm ) 24.00 12.00 4.50 10.50 5.00 7.25 cosmo ELECTRONICS CORPORATION LOAD 10A 250VAC INPUT 5 to 12VDC TYPE LOAD KSD210AC3 INPUT +- 32.00 2.00 2.00 22.50 6.50 3.20 7° 1.20(x2) 4.38 5.08 7.62 0.80(x2) 2.54 2. SCHEMATIC : TOP VIEW 0.60 cosmo ELECTRONICS CORPORATION LOAD 10A 250VAC INPUT 5 to 12VDC TYPE LOAD KS.
