KSD203DC2 SOLID STATE RELAY

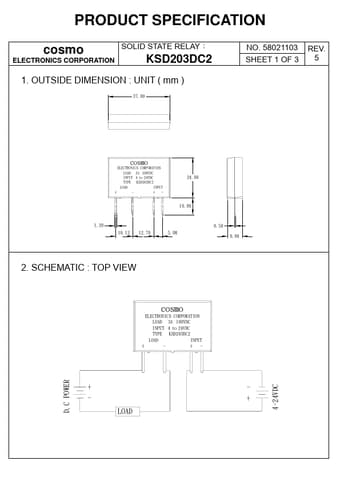

PRODUCT SPECIFICATION DATE: 05/27/11' cosmo SOLID STATE RELAY： ELECTRONICS CORPORATION KSD203DC2 NO. 58021103 REV. SHEET 1 OF 2 4 1. OUTSIDE DIMENSION : UNIT ( mm ) 37.00 cosmo ELECTRONICS CORPORATION LOAD 3A 100VDC INPUT 4 to 24VDC TYPE KSD203DC2 LOAD +- INPUT +- 24.00 10.00 1.20 10.12 12.70 5.08 0.50 9.00 2. SCHEMATIC : TOP VIEW cosmo ELECTRONICS CORPORATION LOAD 3A 100VDC INPUT 4 to 24VDC TYPE KSD203DC2 LOAD INPUT +- +- + - LOAD + D.C POWER 4-24VDC PRODUCT SP.
