MJ13333 NPN Transistor

📥 Download Datasheet Datasheet Preview Page 1

Description

isc Silicon NPN Power Transistor .
Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 400V(Min). Reversed Biased SOA with Inductive Loads. Minimum Lot-to-Lot variations.

📥 Download Datasheet

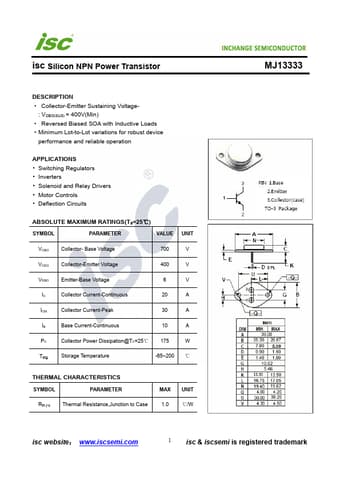

Preview of MJ13333 PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
MJ13333
Manufacturer
INCHANGE
File Size
202.79 KB
Datasheet
MJ13333-INCHANGE.pdf
Description
NPN Transistor

Applications

* Switching Regulators
* Inverters
* Solenoid and Relay Drivers
* Motor Controls
* Deflection Circuits ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector- Base Voltage 700 V VCEO Collector-Emitter Voltage 400 V VEBO Emitte
