MUR1560G - Ultrafast Rectifier

MUR1560G Description

Ultrafast Rectifier INCHANGE Semiconductor MUR1560G .

MUR1560G Features

* Ultrafast 35 and 60 nanosecond recovery time
* Popular TO-220 package
* Low forward drop
* Avalanche energy rated
* 100% avalanche tested

MUR1560G Applications

* The MUR1560 is designed for use in switching power Supplies,inverters and as free wheeling diodes. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR IF(AV) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Cu

📥 Download Datasheet

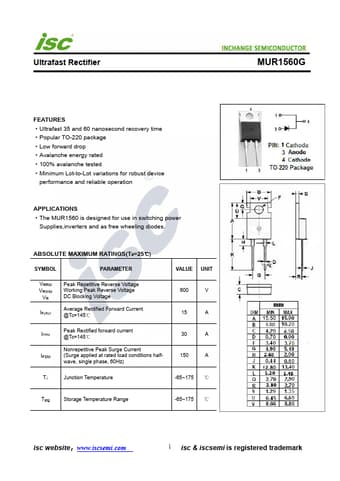

Preview of MUR1560G PDF
datasheet Preview Page 2

Datasheet Details

Part number
MUR1560G
Manufacturer
INCHANGE
File Size
192.68 KB
Datasheet
MUR1560G-INCHANGE.pdf
Description
Ultrafast Rectifier
