MUR10120 - Ultrafast Rectifier

MUR10120 Description

Ultrafast Rectifier MUR10120 .

MUR10120 Features

* 1200V blocking voltage
* 20mJ avalanche energy
* 12V(typical) peak transient overshoot voltage
* 135ns (typical) forward recovery time

MUR10120 Applications

* This power rectifier is specifically designed for use as damper diode in horizontal deflection circuits for high and very high resolution monitors ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR IF(AV) Peak Repetitive Reverse Voltage Working Peak Reverse Voltage

📥 Download Datasheet

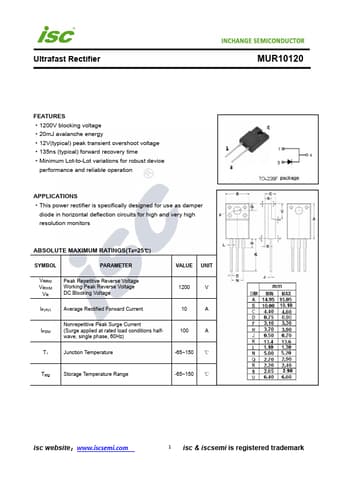

Preview of MUR10120 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MUR10120
Manufacturer
INCHANGE
File Size
207.54 KB
Datasheet
MUR10120-INCHANGE.pdf
Description
Ultrafast Rectifier
