MUR1010 - Super Fast Rectifiers

Product Overview

LGE

Part number	MUR1010
Manufacturer	LGE
File Size	187.72 KB
Description	Super Fast Rectifiers
Datasheet	MUR1010 Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR1010, MUR1005. Please refer to the document for exact specifications by model.

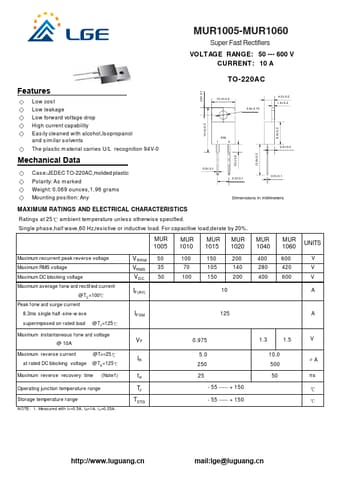

Additional preview pages of the MUR1010 datasheet.

Low cost Low leakage Low forward voltage drop High current capability Eas ily cleaned with alcohol,Is opropanol and s im ilar s olvents The plas tic m aterial carries U/L recognition 94V-0 Mechanical Data Cas e:JEDEC TO-220AC,molded plastic Polarity: As marked Weight: 0.069 ounces,1.96 grams Mounting pos ition: Any 2.8± 0.1 TO-220AC 10.2± 0.2 3.8± 0.15 4.5± 0.2 1.4± 0.2 3.5± 0.3 13.8± 0.5 8.9± 0.2 19.0± 0.5 PIN 12 2.6± 0.2 0.9± 0.1 5.0± 0.1 0.5± 0.1 Dimensions in millimeters MAXIMU.
