MUR1005F - Super Fast Rectifiers

Product Overview

LGE

Part number	MUR1005F
Manufacturer	LGE
File Size	187.07 KB
Description	Super Fast Rectifiers
Datasheet	MUR1005F Datasheet

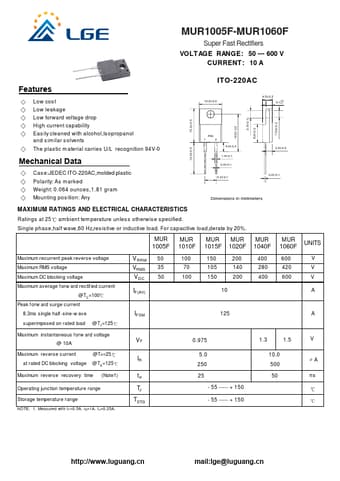

Additional preview pages of the MUR1005F datasheet.

Low cost Low leakage Low forward voltage drop High current capability Eas ily cleaned with alcohol,Is opropanol and s im ilar s olvents The plas tic m aterial carries U/L recognition 94V-0 Mechanical Data Cas e:JEDEC ITO-220AC,molded plastic Polarity: As marked Weight: 0.064 ounces,1.81 gram Mounting pos ition: Any 13.5± 0.5 15.2± 0.5 ITO-220AC 10.2± 0.2 4.5± 0.2 3.1+-00..12 16.5± 0.3 3.3± 0.1 8.2± 0.2 ? 3.2± 0.2 PIN 12 4.0± 0.3 1.4± 0.1 0.6± 0.1 5.0± 0.1 2.6± 0.2 0.6± 0.1 Dimensions.
