Additional preview pages of the MUR1005CT datasheet.
Product details
Features
¬ Fast switching for high efficiency ¬ Low forward voltage drop ¬ High current capability ¬ Low reverse leakage current ¬ High surge current capability Mechanical Data ¬ Case:TO-220AB Heatsink Package ¬ Epoxy: UL 94V-0 rate flame retardant ¬ Terminals: Solderable per MIL-STD-202 method 208 ¬ Polarity:As marked on diode body ¬ Mounting position: Any ¬ Weight: 2.24 grams
Unit : inch (mm)
.196(5.00) .163(4.16) .054(1.39) .045(1.15)
.269(6.85) .226(5.75)
.624(15.87) .50(12.7)MIN
.038(0.96) .019(0.

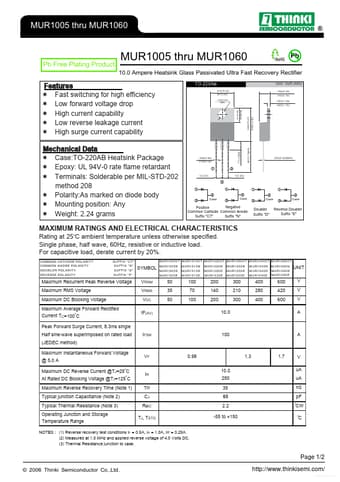

MUR1005CT Datasheet
