STF25NM60ND Datasheet, Mosfet, INCHANGE

STF25NM60ND Features

  • Mosfet
  • Drain Current
      –ID=21A@ TC=25℃
  • Drain Source Voltage- : VDSS= 600V(Min)
  • Static Drain-Source On-Resistance : RDS(on) = 160mΩ(Max)
  • 100% a

PDF File Details

Part number:

STF25NM60ND

Manufacturer:

INCHANGE

File Size:

261.97kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

  • Low Drain-Source On-Resistance APPLICATIONS
  • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAM

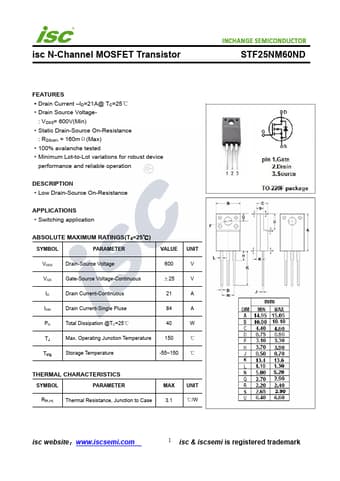

  • Datasheet Preview: STF25NM60ND 📥 Download PDF (261.97kb)
    Page 2 of STF25NM60ND

    STF25NM60ND Application

    • Applications
    • Switching application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V V
