TIP35C - NPN Transistor

Product Overview

📥 Download Datasheet

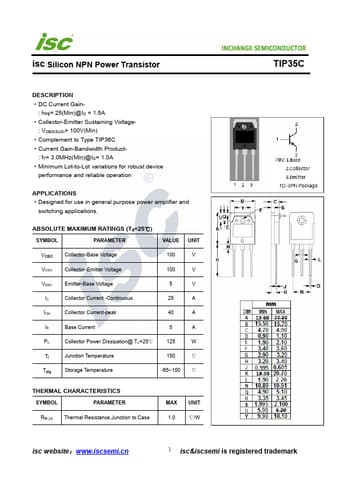

Datasheet preview – TIP35C

Datasheet Details

Part number TIP35C
Manufacturer INCHANGE
File Size 215.71 KB
Description NPN Transistor
Datasheet download datasheet TIP35C Datasheet
Additional preview pages of the TIP35C datasheet.

Product details

Description

DC Current Gain- : hFE= 25(Min)@IC = 1.5A Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 100V(Min) Complement to Type TIP36C Current Gain-Bandwidth Product- : fT= 3.0MHz(Min)@IC= 1.0A Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in general purpose power amplifier and switching applications.ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V V
