TIP35C

Complementary power transistors

TIP35C Features

* Low collector-emitter saturation voltage

* Complementary NPN - PNP transistors Applications

* General purpose

* Audio amplifier Description The devices are manufactured in planar technology with “base island” layout. The resulting transistors show exceptional high gain performance

TIP35C General Description

The devices are manufactured in planar technology with “base island” layout. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage. . 3 2 1 TO-247 Figure 1. Internal schematic diagrams Table 1. Device summary Order code TIP35C TIP36C Marking TIP.

TIP35C Datasheet (172.06 KB)

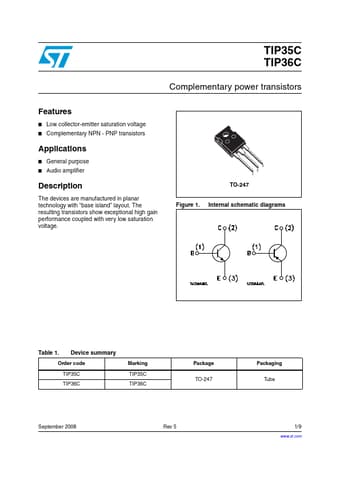

Preview of TIP35C PDF

Datasheet Details

Part number:

TIP35C

Manufacturer:

STMicroelectronics ↗

File Size:

172.06 KB

Description:

Complementary power transistors.
