TIP35A - Complementary Silicon Power Transistor

Product Overview

nELL

Part number	TIP35A
Manufacturer	nELL
File Size	216.82 KB
Description	Complementary Silicon Power Transistor
Datasheet	TIP35A Datasheet
Note	This datasheet PDF includes multiple part numbers: TIP35A, TIP35. Please refer to the document for exact specifications by model.
Additional preview pages of the TIP35A datasheet.

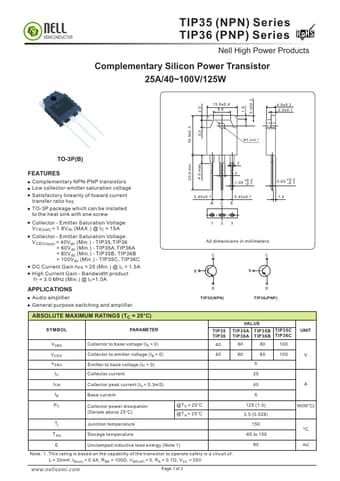

Complementary NPN-PNP transistors Low collector-emitter saturation voltage Satisfactory linearity of foward current transfer ratio hFE TO-3P package which can be installed to the heat sink with one screw Collector - Emitter Saturation Voltage: VCE(sat) = 1.8Vdc (MAX. ) @ IC = 15A Collector - Emitter Saturation Voltage: VCEO(sus) = 40Vdc (Min. ) - TIP35,TIP36 = 60Vdc (Min. ) - TIP35A,TIP36A = 80Vdc (Min. ) - TIP35B, TIP36B = 100Vdc (Min. ) - TIP35C, TIP36C DC Current Gain hFE = 25 (Min. ) @ Ic = 1.5A H.
