ICMEF112P500MFR

COMMON MODE ESD FILTER

ICMEF112P500MFR Features

* Effective for suppressing common mode noise and almost no effect for high speed differential data line

* Two common mode filters and four ESD suppression devices integrated

* Ultra low profile (1.27ⅹ1.00ⅹ0.60mm)

* Ceramic multilayer type SMD component

* Non-

ICMEF112P500MFR General Description

Operating Temperature REQUIREMENTS -40℃ ∼ + 85℃ 5. Equivalent Circuit ①② ⑤⑥ ③④ 6. Mechanical Property 6. 1 Appearance and Dimension PIN NUMBER ①~④ ⑤, ⑥ DESCRIPTION DATA LINE GROUND Unit : mm .

ICMEF112P500MFR Datasheet (392.55 KB)

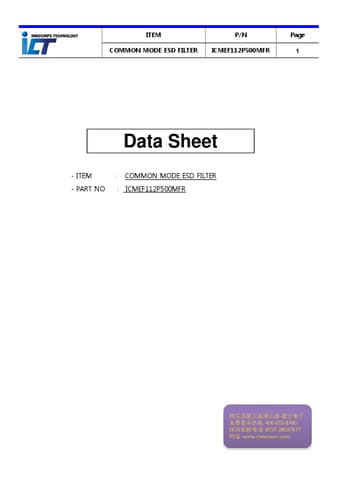

Preview of ICMEF112P500MFR PDF

Datasheet Details

Part number:

ICMEF112P500MFR

Manufacturer:

INNOCHIPS TECHNOLOGY

File Size:

392.55 KB

Description:

Common mode esd filter.
ITEM COMMON MODE ESD FILTER P/N ICMEF112P500MFR Page 1 Data Sheet - ITEM - PART NO : COMMON MODE ESD FILTER : ICMEF112P500MFR ITEM COMMON MODE E.
