ICM-20602

High Performance 6-Axis MEMS MotionTracking

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part InvenSense Inc ICM-20602 IMU ACCEL/GYRO/TEMP I2C/SPI LGA DigiKey 25000 5000 units
$3.17

ICM-20602 Datasheet (808.11 KB)

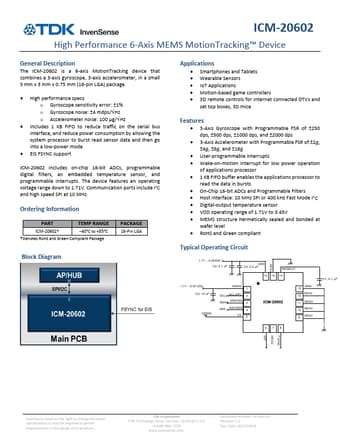

Preview of ICM-20602 PDF

Datasheet Details

Part number:

ICM-20602

Manufacturer:

TDK

File Size:

808.11 KB

Description:

High performance 6-axis mems motiontracking.

ICM-20602 Features

* an operating voltage range down to 1.71V. Communication ports include I2C and high speed SPI at 10 MHz. Ordering Information PART TEMP RANGE ICM-20602†

* 40°C to +85°C †Denotes RoHS and Green-Compliant Package PACKAGE 16-Pin LGA Block Diagram Applications

* Smartphones and Ta

ICM-20602 General Description

The ICM-20602 is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, in a small 3 mm x 3 mm x 0.75 mm (16-pin LGA) package.

* High performance specs o Gyroscope sensitivity error: ±1% o Gyroscope noise: ±4 mdps/√Hz o Accelerometer noise: 100 µg/√Hz
