ICM-42688-P - 6-Axis MEMS MotionTracking

ICM-42688-P Description

ICM-42688-P Datasheet High Precision 6-Axis MEMS MotionTrackingTM Device ICM-42688-P HIGHLIGHTS ICM-42688-P .

ICM-42688-P Features

* The ICM-42688-P is a 6-axis MEMS MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer. It has a configurable host interface that supports I3CSM, I2C and SPI serial communication, features a 2 kB FIFO and 2 programmable interrupts with ultralow-power wake-on-motion suppo

ICM-42688-P Applications

* AR/VR Controllers
* Head Mounted Displays
* Wearables
* Sports
* Robotics
* IoT Applications The device supports a VDD operating range of 1.71V to 3.6V, and a separate digital IO supply, VDDIO from 1.71V to 3.6V. BLOCK DIAGRAM ORDERING INFORMATION

📥 Download Datasheet

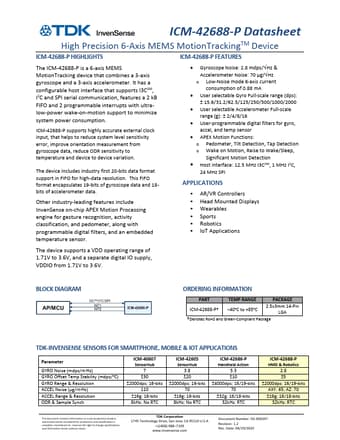

Preview of ICM-42688-P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICM-42688-P
Manufacturer
TDK
File Size
1.32 MB
Datasheet
ICM-42688-P-TDK.pdf
Description
6-Axis MEMS MotionTracking
