ICM-42688-V - High Precision 6-Axis MEMS MotionTracking Device

ICM-42688-V Description

ICM-42688-V Datasheet High Precision 6-Axis MEMS MotionTrackingTM Device with Advanced Sensor Fusion Library ICM-42688-V HIGHLIGHTS ICM-42688-V FEA.

ICM-42688-V Features

* The ICM-42688-V SmartMotion™ sensor is a 6-axis MEMS MotionTracking device that combines a 3-axis gyroscope and a 3-axis accelerometer. It has a configurable host interface that supports I3CSM, I2C and SPI serial communication, features a 2 KB FIFO and 2 programmable interrupts with ultra-low-power

ICM-42688-V Applications

* AR/VR Controllers
* Head Mounted Displays
* Wearables
* Sports
* Robotics
* IoT Applications The device supports a VDD operating range of 1.71V to 3.6V, and a separate digital IO supply, VDDIO from 1.71V to 3.6V. ORDERING INFORMATION BLOCK DIAGRAM

📥 Download Datasheet

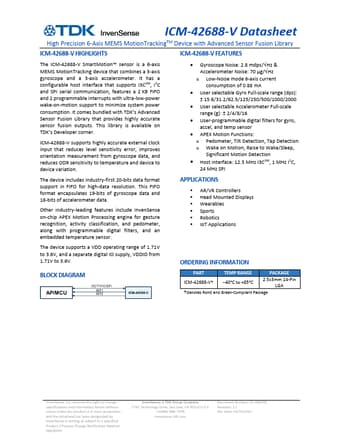

Preview of ICM-42688-V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICM-42688-V
Manufacturer
TDK
File Size
2.18 MB
Datasheet
ICM-42688-V-TDK.pdf
Description
High Precision 6-Axis MEMS MotionTracking Device
