NCB410U4-DS-AB

TFT LCD Monitor Control Board

NCB410U4-DS-AB Features

* ) : RGB to RGB or Component to RGB Data Sheet NCB410U4

* In case of HD(1080i) signal input, it does not support PIP & PBP.. 11 INNODISPLAY Co., Ltd. Data Sheet NCB410U4 ASSEMBLY NOTES This controller is designed for monitors and custom display projects using TFT (active matrix) LCD panels of

NCB410U4-DS-AB General Description

WVGA Panel 852X480 NCB410WV4 XGA Panel 1024X768 NCB410X4 WXGA Panel 1280X768 NCB410W4 WXGA Panel 1366X768 NCB410WZ4 1 Model name SXGA Panel 1280X1024 NCB410E4 WSXGA+ Panel 1680X1050 NCB410WE4 UXGA Panel 1600X1200 NCB410U4 HD Panel 1920X1080 NCB410WH4 WUXGA Panel 1920X1200 NC.

NCB410U4-DS-AB Datasheet (1.10 MB)

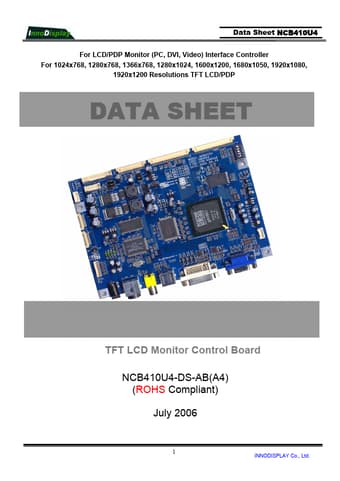

Preview of NCB410U4-DS-AB PDF

Datasheet Details

Part number:

NCB410U4-DS-AB

Manufacturer:

INNODISPLAY

File Size:

1.10 MB

Description:

Tft lcd monitor control board.
Data Sheet NCB410U4 For LCD/PDP Monitor (PC, DVI, Video) Interface Controller For 1024x768, 1280x768, 1366x768, 1280x1024, 1600x1200, 1680x1050, 1920x.
