TFT LCD Monitor Control Board

NCB410U2-DS-A3 Features

* ve been labeled. Guides to connectors and mounting holes are shown in the following relevant sections. 1. LCD Panel: This controller has LVDS interface logic on the Board for different kind of TFT LCD panel. Due to the different signal timing and electrical characteristics from each LCD panel manufa

NCB410U2-DS-A3 General Description

WVGA Panel 8520X480 NCB410WV2 XGA Panel 1024X768 NCB410X2 WXGA Panel 1280X768 NCB410W2 1 Model name WXGA Panel 1366X768 NCB410WZ2 UXGA Panel 1600X1200 NCB410U2 HD Panel 1920X1080 NCB410WH2 WUXGA Panel 1920X1200 NCB410WU2 2 LCD Module SVGA, XGA, WXGA, SXGA 3 Signal Input Resol.

NCB410U2-DS-A3 Datasheet (1.83 MB)

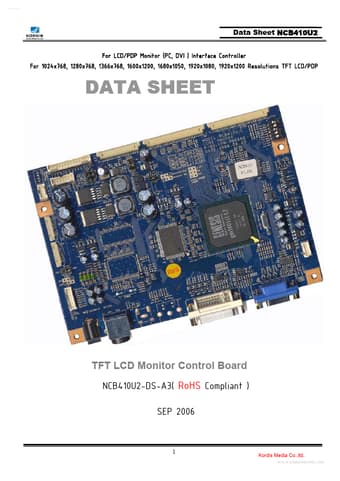

Preview of NCB410U2-DS-A3 PDF

Datasheet Details

Part number:

NCB410U2-DS-A3

Manufacturer:

Kordis Media

File Size:

1.83 MB

Description:

Tft lcd monitor control board.
www.DataSheet4U.net Data Sheet NCB410U2 For LCD/PDP Monitor (PC, DVI ) Interface Controller For 1024x768, 1280x768, 1366x768, 1600x1200, 1680x1050, 19.
