RLR-05CxxxxFS RLR Series / THICK FILM

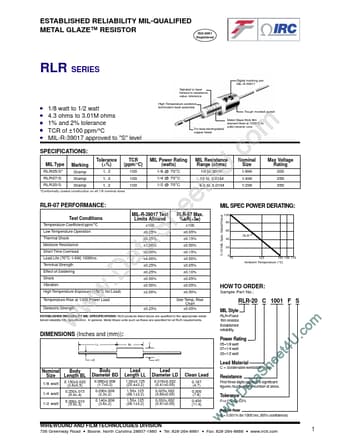

ESTABLISHED RELIABILITY MIL-QUALIFIED METAL GLAZE™ RESISTOR ISO-9001 Registered RLR SERIES Digital marking per MIL-R-39017 Spiraled or laser helixed to resistance value, tolerance 1/8 watt to 1/2 watt 4.3 ohms to 3.01M ohms 1% and 2% tolerance TCR of ±100 ppm/°C MIL-R-39017 approved to "S" level High Temperature soldered termination-lead assembly Tough molded jacket Metal Glaze thick film element fired at 1000°C to solid ceramic core SPECIF.

RLR20C8660FS_IRC.pdf

RLR-05CxxxxFS Datasheet Preview — This datasheet PDF includes multiple part numbers: RLR-05CxxxxFS, RLR20C8660FS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RLR-05CxxxxFS, RLR20C8660FS

Manufacturer:

IRC

File Size:

47.06 KB

Description:

Rlr series / thick film.

Note:

This datasheet PDF includes multiple part numbers: RLR-05CxxxxFS, RLR20C8660FS.
Please refer to the document for exact specifications by model.
