RLR05C1R00FMB1423, RLR05 Datasheet - Vishay

RLR05C1R00FMB1423 Metal Film Resistors

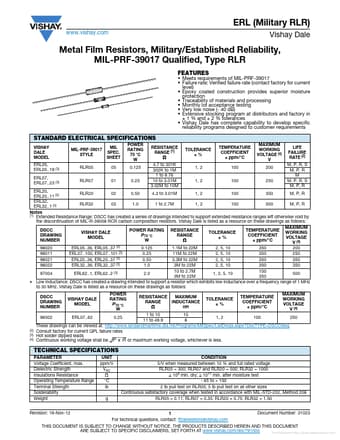

ERL (Military RLR) www.vishay.com Vishay Dale Metal Film Resistors, Military/Established Reliability, MIL-PRF-39017 Qualified, Type RLR Meets requirements of MIL-PRF-39017 Failure rate: Verified failure rate (contact factory for current level) Epoxy coated construction provides superior moisture protection Traceability of materials and processing Monthly lot acceptance testing Very low noise (- 40 dB) Extensive stocking prog.

RLR05C1R00FMB1423 Features

* STANDARD ELECTRICAL SPECIFICATIONS VISHAY DALE MODEL ERL05, ERL05..19 (3) ERL07, ERL07..23 (3) MIL-PRF-39017 STYLE RLR05 RLR07 MIL SPEC. SHEET 05 01 POWER RATING 70 °C W 0.125 0.25 RESISTANCE RANGE (1)  4.7 to 301K 302K to 1M 1 to 9.76 10 to 3.01M 3.02M to 10M TOLERANCE ±% 1, 2 1, 2 TEMPERATURE CO
