IRFS9N60A SMPS MOSFET

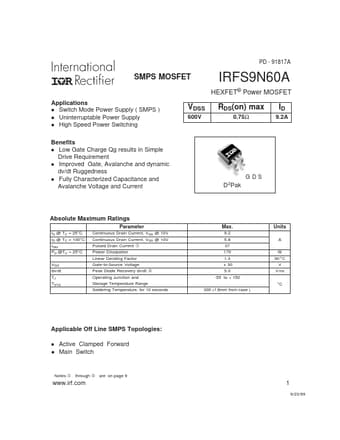

PD - 91817A SMPS MOSFET IRFS9N60A HEXFET® Power MOSFET Applications l Switch Mode Power Supply ( SMPS ) l Uninterruptable Power Supply l High Speed Power Switching Benefits Low Gate Charge Qg results in Simple Drive Requirement l Improved Gate, Avalanche and dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l VDSS 600V RDS(on) max 0.75Ω ID 9.2A G DS D2Pak Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS dv.

IRFS9N60A Features

* ) YY = Y E A R W W = W EEK 8 www.irf.com IRFS9N60A Tape & Reel Information D2Pak TR R 1 .6 0 (.0 63 ) 1 .5 0 (.0 59 ) 4 .1 0 ( .1 6 1) 3 .9 0 ( .1 5 3) 1.60 (.06 3) 1.50 (.05 9) 0 .3 68 (.0 145 ) 0 .3 42 (.0 135 ) F E ED D IRE C TIO N 1 .8 5 (.0 7 3 ) 1 .6 5 (.0 6 5 ) 1 1.60 (.457 ) 1 1.40 (.4
