IRFS9630 Datasheet - Fairchild

IRFS9630 Advanced Power MOSFET

IRFS9630 Features

* Avalanche Rugged Technology Rugged Gate Oxide Technology Lower Input Capacitance Improved Gate Charge Extended Safe Operating Area Lower Leakage Current : 10 µA (Max.) @ VDS = -200V Low RDS(ON) : 0.581 Ω (Typ.) 1 2 3 SFS9630 BVDSS = -200 V RDS(on) = 0.8 Ω ID = -4.4 A TO-220F 1.Gate 2. Drain 3. Sou

IRFS9630_Fairchild.pdf

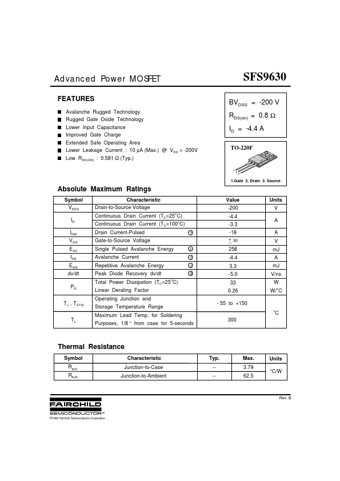

Preview of IRFS9630 PDF
IRFS9630 Datasheet Preview Page 2 IRFS9630 Datasheet Preview Page 3

Datasheet Details

Part number:

IRFS9630

Manufacturer:

Fairchild

File Size:

260.40 KB

Description:

Advanced power mosfet.
