IRFS250B Datasheet - Fairchild

200V N-Channel MOSFET

IRFS250B Features

* 21.3A, 200V, RDS(on) = 0.085Ω @VGS = 10 V Low gate charge ( typical 95 nC) Low Crss ( typical 75 pF) Fast switching 100% avalanche tested Improved dv/dt capability D !

* ◀ ▲

* G! G D S TO-3PF IRFS Series ! S Absolute Ma

IRFS250B General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the a.

IRFS250B Datasheet (654.35 KB)

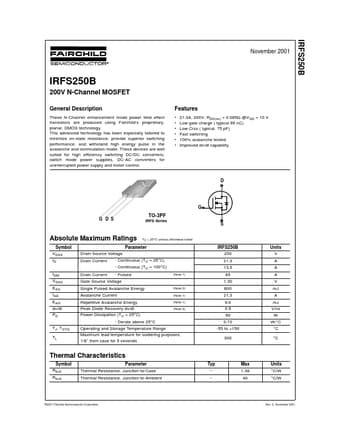

IRFS250B Datasheet Preview — Preview of IRFS250B PDF

Datasheet Details

Part number:

IRFS250B

Manufacturer:

Fairchild

File Size:

654.35 KB

Description:

200v n-channel mosfet.
