IRFS254 - Power MOSFET

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

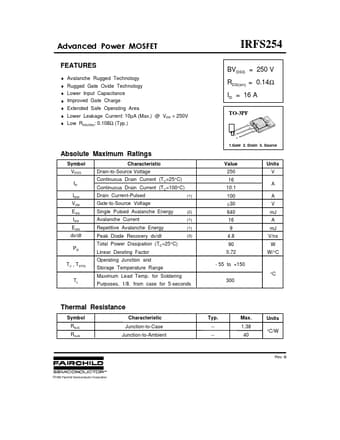

IRFS254 Power MOSFET by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – IRFS254

Datasheet Details

Part number	IRFS254
Manufacturer	Fairchild Semiconductor
File Size	234.72 KB
Description	Power MOSFET
Datasheet	IRFS254 Datasheet
Additional preview pages of the IRFS254 datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 250V.
Low RDS(ON): 0.108Ω (Typ. ) Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous Drain Current (TC=25°C) Continuous Drain Current (TC=100°C) Drain Current-Pulsed (1).
