IRS21867S

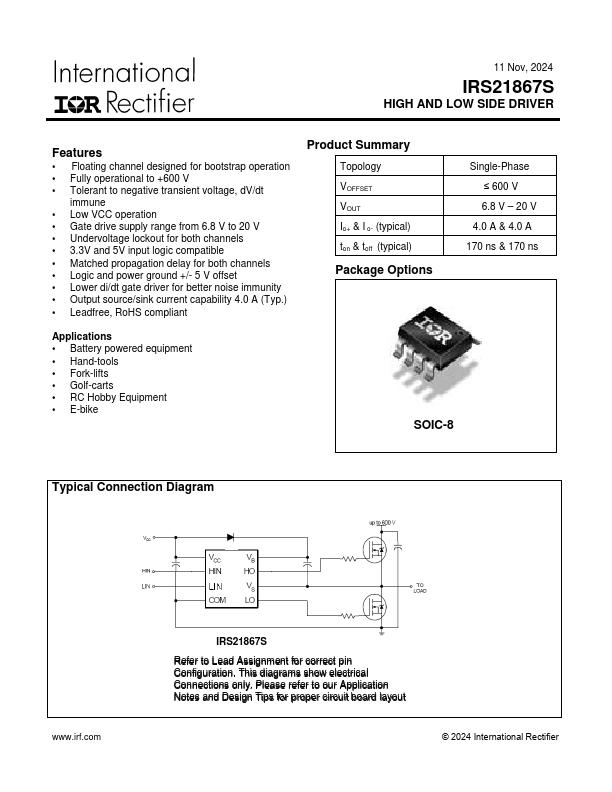

HIGH AND LOW SIDE DRIVER
Features
• Floating channel designed for bootstrap operation • Fully operational to +600 V • Tolerant to negative transient voltage, dV/dt
immune • Low VCC operation • Gate drive supply range from 6.8 V to 20 V • Undervoltage lockout for both channels • 3.3V and 5V input logic compatible • Matched propagation delay for both channels • Logic and power ground +/- 5 V offset • Lower di/dt gate driver for better noise immunity • Output source/sink current capability 4.0 A (Typ.)
• Leadfree, RoHS compliant
Product Summary
Topology VOFFSET VOUT Io+ & I o- (typical) ton & toff (typical)
Package Options
Single-Phase ≤ 600 V
16.8 V – 20 V 4.0 A & 4.

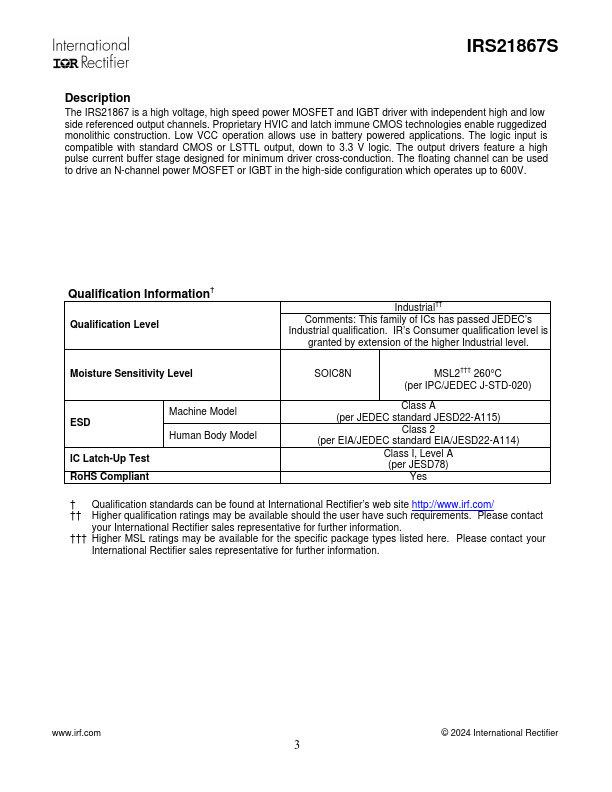

IRS21867S Datasheet
