JANTXV2N7228, JANTX2N7228, POWER MOSFET

PD - 90493F POWER MOSFET THRU-HOLE (TO-254AA) Product Summary Part Number IRFM450 IRFM450 JANTX2N7228 JANTXV2N7228 REF: MIL-PRF-19500/592 500V, N-CH.

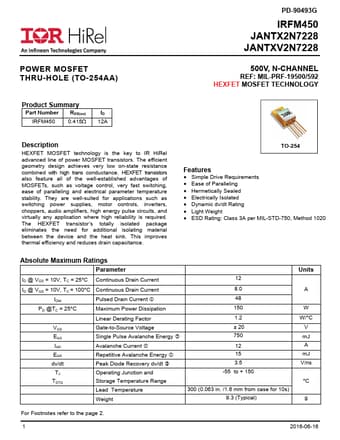

datasheet Preview Page 1 from Datasheet4u.com

JANTX2N7228-IRF.pdf

JANTXV2N7228 Datasheet Preview — This datasheet PDF includes multiple part numbers: JANTXV2N7228, JANTX2N7228. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JANTXV2N7228, JANTX2N7228

Manufacturer:

IRF

File Size:

468.20 KB

Description:

POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: JANTXV2N7228, JANTX2N7228.
Please refer to the document for exact specifications by model.

Features

* n n n n n n Simple Drive Requirements Ease of Paralleling Hermetically Sealed Electrically Isolated Dynamic dv/dt Rating Light-weight Absolute Maximum Ratings Parameter ID @ VGS = 10V, TC = 25°C ID @ VGS = 10V, TC = 100°C IDM PD @ TC = 25°C VGS EAS IAR EAR dv/dt TJ T STG Continuous Drain Current

Applications

* such as switching power supplies, motor controls, inverters, choppers, audio amplifiers, high energy pulse circuits, and virtually any application where high reliability is required. The HEXFET transistor’s totally isolated package eliminates the need for additional isolating material between the de
