ISQ204 (ISQ201 - ISQ204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS

The IS20 *, ISD20 *, ISQ20 * series of optically coupled isolators consist of infrared light emitting diodes and NPN silicon photo transistors in space efficient dual in line plastic packages. l ISD201 ISD202 ISD203 ISD204 3.0 0.5 2.54 1 7.0 6.0 2 3 4 10.16 9.16 7.62 4.0 3.0 0.5 3.35 8 7.

www.DataSheet4U.com IS201, IS202, IS203, IS204, ISD201, ISD202, ISD203, ISD204, ISQ201, ISQ202, ISQ203, ISQ204 HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS APPROVALS l UL recognised, File No. E91231 'X' SPECIFICATION APPROVALS l IS201 IS202 IS203 IS204 1.2 2.54 7.0 6.0 1 2 3 Dimensions in mm 6 5 4 VDE 0884 in 3 available lead form : - STD - G form - SMD approved to CECC 00802 l IS20 Certified to EN60950 by the following Test Bodies :Nemko - Certificate No. P01102464 Fim.

ISQ204 Features

* l Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High BVCEO (70V min) l All electrical parameter 100% tested l Custom electrical selections available APPLICATIONS l Computer t

ISQ201_ISOCOMCOMPONENTS.pdf

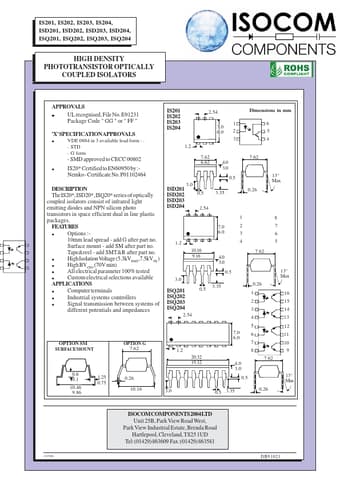

ISQ204 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISQ204, ISQ201. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISQ204, ISQ201

Manufacturer:

ISOCOM COMPONENTS

File Size:

73.16 KB

Description:

(isq201 - isq204) high density phototransistor optically coupled isolators.

Note:

This datasheet PDF includes multiple part numbers: ISQ204, ISQ201.
Please refer to the document for exact specifications by model.
