MOC8104X, MOC8101X, PHOTOTRANSISTOR

www.DataSheet4U.com MOC8101X,MOC8102X,MOC8103X,MOC8104X,MOC8105X MOC8101, MOC8102, MOC8103,MOC8104,MOC8105 NON-BASE LEAD OPTICALLY COUPLED ISOLATOR .
The MOC8101, MOC8102, MOC8103, MOC8104, MOC8105 series of optically coupled isolators consist of infrared light emitting diode and NPN silicon photo.

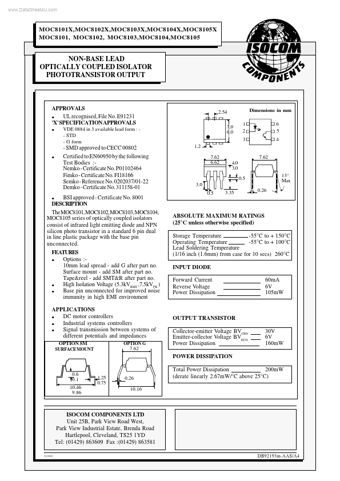

datasheet Preview Page 1 from Datasheet4u.com

MOC8101X_ISOCOMCOMPONENTS.pdf

MOC8104X Datasheet Preview — This datasheet PDF includes multiple part numbers: MOC8104X, MOC8101X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MOC8104X, MOC8101X

Manufacturer:

ISOCOM COMPONENTS

File Size:

107.17 KB

Description:

PHOTOTRANSISTOR

Note:

This datasheet PDF includes multiple part numbers: MOC8104X, MOC8101X.
Please refer to the document for exact specifications by model.

Features

* Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l Base pin unconnected for improved noise immunity in high EMI environment l ABSOLUTE MAXIMUM RATINGS (25°C unless otherwise spec

Applications

* DC motor controllers l Industrial systems controllers l Signal transmission between systems of different potentials and impedances l OUTPUT TRANSISTOR Collector-emitter Voltage BVCEO Emitter-collector Voltage BVECO Power Dissipation POWER DISSIPATION 30V 6V 160mW OPTION SM SURFACE MOUNT OPTION G
