ISTS200, ISTS100 Datasheet - ISOCOM

ISTS200 Photointerrupter

The ISTS100 and ISTS200 series of opaque photointerrupters are single channel switches consisting of a Gallium Arsenide infrared emitting diode and a NPN silicon photo transistor mounted in a polycarbonate housing. The package is designed to optimise the mechanical resolution, coupling efficiency, a.

ISTS200 Features

* High Gain

* 3mm Gap between LED and Detector

* Polycarbonate Case Protection against Ambient Light

* Pb Free and RoHS Compliant APPLICATIONS

* Copiers, Printers, Facsimiles

* Record Players, Cassette Decks

* Optoelectronic Switches Top View

ISTS100_ISOCOM.pdf

This datasheet PDF includes multiple part numbers: ISTS200, ISTS100. Please refer to the document for exact specifications by model.

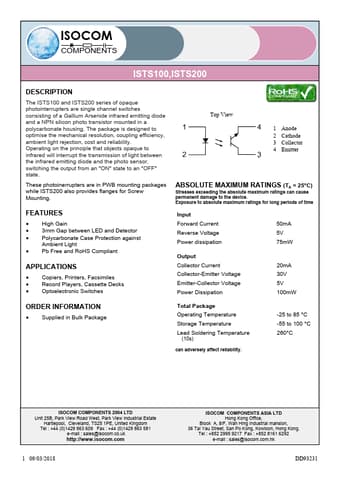

ISTS200 Datasheet Preview Page 2 ISTS200 Datasheet Preview Page 3

Datasheet Details

Part number:

ISTS200, ISTS100

Manufacturer:

ISOCOM

File Size:

2.59 MB

Description:

Photointerrupter.

Note:

This datasheet PDF includes multiple part numbers: ISTS200, ISTS100.
Please refer to the document for exact specifications by model.
