OCXO143, OCXO-143 - oscillators

The OCXO143 by ISOTEMP is a oscillators. Below is the official datasheet preview.

Datasheet Details

Part number	OCXO143, OCXO-143
Manufacturer	ISOTEMP
File Size	180.46 KB
Description	oscillators
Datasheet	OCXO-143-ISOTEMP.pdf
Note	This datasheet PDF includes multiple part numbers: OCXO143, OCXO-143. Please refer to the document for exact specifications by model.

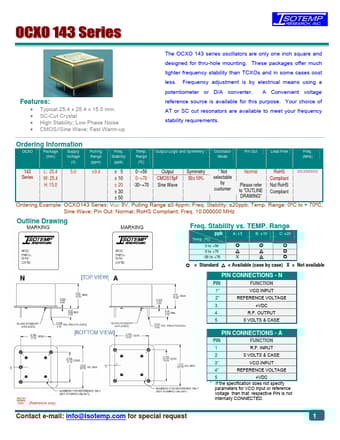

Additional preview pages of the OCXO143 datasheet.

Typical 25.4 x 25.4 x 15.0 mm.
SC-Cut Crystal.
High Stability; Low Phase Noise.
CMOS//Sine Wave; Fast Warm-up The OCXO 143 series oscillators are only one inch square and designed for thru-hole mounting. These packages offer much tighter frequency stability than TCXOs and in some cases cost less. Frequency adjustment is by electrical means using a potentiometer or D/A converter. A Convenient voltage reference source is available for this purpose. Your choice of AT or SC c.
