OCXO-14 - CRYSTALS OSCILLATORS

This page provides the datasheet information for the OCXO-14, a member of the OCXO-14-PETERMANN CRYSTALS OSCILLATORS family.

Datasheet Summary

Features

  •  High reliability for low cost  Aging of ± 0.001ppm/day in compact package using SC-CUT crystals  Extended temperature range to -40/+75°C available  Short warm-up time and excellent retrace behaviour  Low power consumption and excellent phase noise parameters  AT-cut and SC-cut based designs.

📥 Download Datasheet

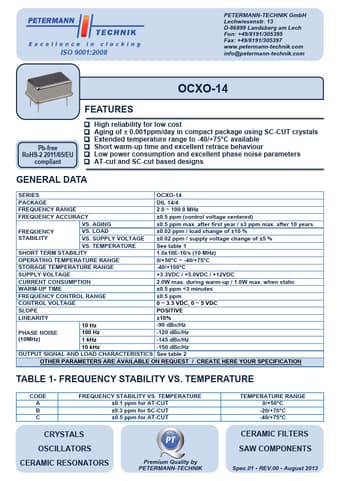

Datasheet preview – OCXO-14

Datasheet Details

Part number OCXO-14
Manufacturer PETERMANN-TECHNIK
File Size 659.84 KB
Description CRYSTALS OSCILLATORS
Datasheet download datasheet OCXO-14 Datasheet
Additional preview pages of the OCXO-14 datasheet.

📁 Similar Datasheet

Other Datasheets by PETERMANN-TECHNIK

Full PDF Text Transcription

Click to expand full text
ISO 9001:2008 PETERMANN-TECHNIK GmbH Lechwiesenstr. 13 D-86899 Landsberg am Lech Fon: +49/8191/305395 Fax: +49/8191/305397 www.petermann-technik.com info@petermann-technik.com OCXO-14 Pb-free RoHS-2 2011/65/EU compliant FEATURES  High reliability for low cost  Aging of ± 0.001ppm/day in compact package using SC-CUT crystals  Extended temperature range to -40/+75°C available  Short warm-up time and excellent retrace behaviour  Low power consumption and excellent phase noise parameters  AT-cut and SC-cut based designs GENERAL DATA SERIES OCXO-14 PACKAGE DIL 14/4 FREQUENCY RANGE 2.0 ~ 100.0 MHz FREQUENCY ACCURACY ±0.5 ppm (control voltage centered) VS. AGING ±0.5 ppm max. after first year / ±3 ppm max. after 10 years FREQUENCY VS. LOAD ±0.
