IS2021 - Bluetooth 4.1 Stereo Audio SOC

Download the IS2021 datasheet PDF. This datasheet also covers the IS2020 variant, as both devices belong to the same bluetooth 4.1 stereo audio soc family and are provided as variant models within a single manufacturer datasheet.

Description

Stereo Audio Chip is a compact, highly integrated, CMOS single-chip RF and baseband IC for Bluetooth v4.1 with Enhanced Data Rate 2.4GHz applications.

This chip is fully compliant with Bluetooth specification and completely backward-compatible with Bluetooth 3.0, 2.0 or 1.2 systems.

Features

  • System Specification.
  • Compliant with Bluetooth Specification v.4.1 (EDR) in 2.4 GHz ISM band.
  • It supports following profiles : - HFP 1.6 - HSP 1.1 - A2DP 1.2 - AVRCP 1.5 - SPP 1.0 - PBAP 1.0 Baseband Hardware.
  • 16MHz main clock input.
  • Built-in internal ROM for program memory.
  • Support to connect to two hosts ( phones, tablets…) with HFP or A2DP profiles simultaneously.
  • Adaptive Frequency Hopping (AFH) avoids occupied RF channels.
  • Fast Connection supported RF Hard.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IS2020-ISSC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IS2021
Manufacturer ISSC
File Size 2.44 MB
Description Bluetooth 4.1 Stereo Audio SOC
Datasheet download datasheet IS2021 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IS202 (IS201 - IS204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS
IS201 (IS201 - IS204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS
IS201-63 OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT ISOCOM COMPONENTS
IS201X63 OPTICALLY COUPLED ISOLATOR PHOTOTRANSISTOR OUTPUT ISOCOM COMPONENTS
IS203 (IS201 - IS204) HIGH DENSITY PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS

Other Datasheets by ISSC

Part Number Description
IS2020 Bluetooth 4.1 Stereo Audio SOC
IS2023 Bluetooth 4.1 Stereo Audio SOC
IS2025 Bluetooth 4.1 Stereo Audio SOC
IS2008 Bluetooth 4.1 Mono Audio SOC
IS2010 Bluetooth 4.1 Mono Audio SOC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

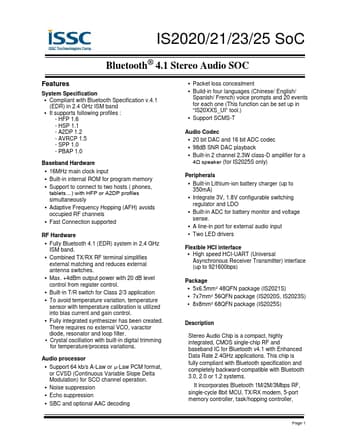

IS2020/21/23/25 SoC Bluetooth® 4.1 Stereo Audio SOC Features System Specification  Compliant with Bluetooth Specification v.4.1 (EDR) in 2.4 GHz ISM band  It supports following profiles : - HFP 1.6 - HSP 1.1 - A2DP 1.2 - AVRCP 1.5 - SPP 1.0 - PBAP 1.0 Baseband Hardware  16MHz main clock input  Built-in internal ROM for program memory  Support to connect to two hosts ( phones, tablets…) with HFP or A2DP profiles simultaneously  Adaptive Frequency Hopping (AFH) avoids occupied RF channels  Fast Connection supported RF Hardware  Fully Bluetooth 4.1 (EDR) system in 2.4 GHz ISM band.  Combined TX/RX RF terminal simplifies external matching and reduces external antenna switches.  Max. +4dBm output power with 20 dB level control from register control.
