IS25CD512 - 512Kbit / 1Mbit / 2Mbit Single Operating Voltage Serial Flash Memory

ISSI

Datasheet Details

Part number	IS25CD512
Manufacturer	ISSI
File Size	906.76 KB
Description	512Kbit / 1Mbit / 2Mbit Single Operating Voltage Serial Flash Memory
Datasheet	IS25CD512-ISSI.pdf

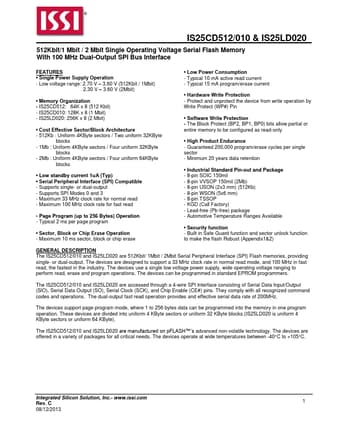

The IS25CD512/010 and IS25LD020 are 512Kbit/ 1Mbit / 2Mbit Serial Peripheral Interface (SPI) Flash memories, providing single- or dual-output.

Low Power Consumption Memory With 100 MHz Dual.
Single Power Supply Operation - Typical 10Memory mA active read current Output SPI Bus Interface With 100 MHz Dual- Low voltage range: 2.70 V.
3.60 V (512Kbit / 1Mbit) - Typical 15 mA program/erase current Output SPI Bus Interface 2.30 V.
3.60 V (2Mbit).
Memory Organization - IS25CD512: 64K x 8 (512 Kbit) - IS25CD010: 128K x 8 (1 Mbit) - IS25LD020: 256K x 8 (2 Mbit).
Cost Effective Sector/Block.
