IS25C04 (IS25C02 / IS25C04) 2K-BIT/4K-BIT SPI SERIAL ELECTRICALLY ERASABLE PROM

The IS25C02 and IS25C04 are electrically erasable PROM devices that use the Serial Peripheral Interface (SPI) for communications. The IS25C02 is 2Kbit (256x 8) and the IS25C04 is 4Kbit (512x 8). The IS25C02/04 EEPROMs are offered in a wide operating voltage range of 1.8V to 5.5V to be compatible wit.

IS25C04 Features

* Serial Peripheral Interface (SPI) Compatible

* Supports SPI Modes 0 (0,0) and 3 (1,1)

* Low-voltage Operation

* Vcc = 1.8V to 5.5V

* Low power CMOS

* Active current less than 3.0 mA (2.5V)

* Standby current less than 1 µA (2.5V)

* Blo

IS25C02_ISSI.pdf

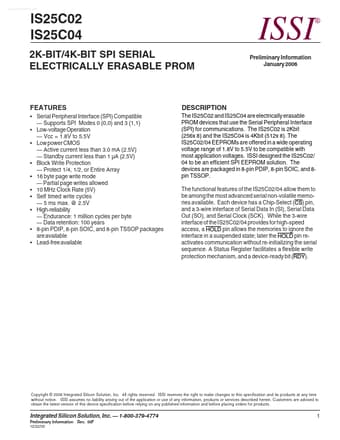

IS25C04 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS25C04, IS25C02. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS25C04, IS25C02

Manufacturer:

ISSI

File Size:

159.56 KB

Description:

(is25c02 / is25c04) 2k-bit/4k-bit spi serial electrically erasable prom.

Note:

This datasheet PDF includes multiple part numbers: IS25C04, IS25C02.
Please refer to the document for exact specifications by model.
