IS25C256, IS25C128 Datasheet - ISSI

IS25C256 (IS25C128 / IS25C256) 128K-bit/ 256K-bit SPI SERIAL ELECTRICALLY ERASABLE PROM

The IS25C128 and IS25C256 are electrically erasable PROM devices that use the Serial Peripheral Interface (SPI) for communications. The IS25C128 is 128Kbit (16K x 8) and the IS25C256 is 256Kbit (32K x 8). The IS25C128/256 EEPROMs are offered in a wide operating voltage range of 1.8V to 5.5V for comp.

IS25C256 Features

* Serial Peripheral Interface (SPI) Compatible

* Supports SPI Modes 0 (0,0) and 3 (1,1)

* Low power CMOS

* Active current less than 3.0 mA (2.5V)

* Standby current less than 20 µA (2.5V)

* Low-voltage Operation

* Vcc = 1.8V to 5.5V

* Bl

IS25C128_ISSI.pdf

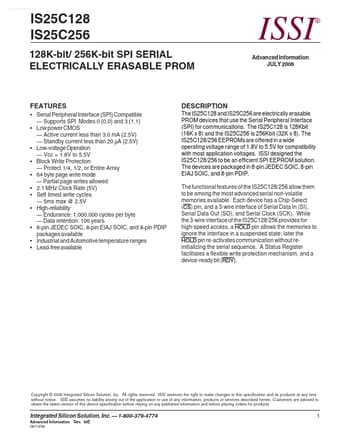

IS25C256 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS25C256, IS25C128. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IS25C256, IS25C128

Manufacturer:

ISSI

File Size:

162.85 KB

Description:

(is25c128 / is25c256) 128k-bit/ 256k-bit spi serial electrically erasable prom.

Note:

This datasheet PDF includes multiple part numbers: IS25C256, IS25C128.
Please refer to the document for exact specifications by model.
