IS25C16, IS25C08 Datasheet - ISSI

IS25C16 (IS25C08 / IS25C16) 8K-BIT/16K-BIT SPI SERIAL ELECTRICALLY ERASABLE PROM

The IS25C08 and IS25C16 are electrically erasable PROM devices that use the Serial Peripheral Interface (SPI) for communications. The IS25C08 is 8Kbit (1024x 8) and the IS25C16 is 16Kbit (2048 x 8). The IS25C08/16 EEPROMs are offered in a wide operating voltage range of 1.8V to 5.5V compatible with .

IS25C16 Features

* Serial Peripheral Interface (SPI) Compatible

* Supports SPI Modes 0 (0,0) and 3 (1,1)

* Wide-voltage Operation

* Vcc = 1.8V to 5.5V

* Low power CMOS

* Active current less than 3.0 mA (2.5V)

* Standby current less than 2.0 µA (2.5V)

IS25C08_ISSI.pdf

This datasheet PDF includes multiple part numbers: IS25C16, IS25C08. Please refer to the document for exact specifications by model.

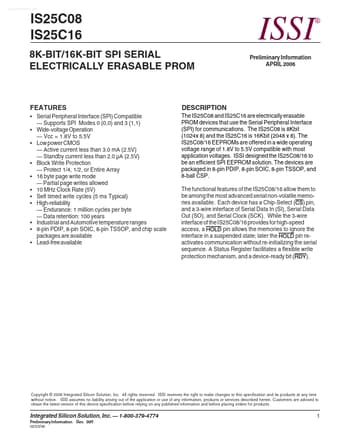

IS25C16 Datasheet Preview Page 2 IS25C16 Datasheet Preview Page 3

Datasheet Details

Part number:

IS25C16, IS25C08

Manufacturer:

ISSI

File Size:

113.55 KB

Description:

(is25c08 / is25c16) 8k-bit/16k-bit spi serial electrically erasable prom.

Note:

This datasheet PDF includes multiple part numbers: IS25C16, IS25C08.
Please refer to the document for exact specifications by model.
