IS42RM32100C, IS42SM32100C - 512K x 32Bits x 2Banks Low Power Synchronous DRAM

ISSI

Datasheet Details

Part number	IS42RM32100C, IS42SM32100C
Manufacturer	ISSI
File Size	1.85 MB
Description	512K x 32Bits x 2Banks Low Power Synchronous DRAM
Datasheet	IS42SM32100C_ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS42RM32100C, IS42SM32100C. Please refer to the document for exact specifications by model.

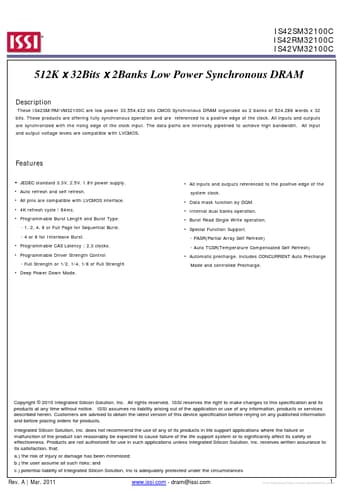

These IS42SM/RM/VM32100C are low power 33,554,432 bits CMOS Synchronous DRAM organized as 2 banks of 524,288 words x 32 bits.

JEDEC standard 3.3V, 2.5V, 1.8V power supply.
Auto refresh and self refresh.
All pins are compatible with LVCMOS interface.
4K refresh cycle / 64ms.
Programmable Burst Length and Burst Type. - 1, 2, 4, 8 or Full Page for Sequential Burst. - 4 or 8 for Interleave Burst.
Programmable CAS Latency : 2,3 clocks.
Programmable Driver Strength Control - Full Strength or 1/2, 1/4, 1/8 of Full Strength.
Deep Power Down Mode.
